Miniature 0402 X5R MLCC 0.1µF High Capacitance 16V Rating High-Frequency Stability Low ESR RoHS Compliant Superior Reliability for Advanced Decoupling and Filtering in Compact Electronics
Features
-
Ultra-Miniature 0402 Size: Maximizes PCB space efficiency, ideal for high-density designs.
-
Stable X5R Dielectric: Provides reliable capacitance performance over a broad temperature range.
-
Moderate Voltage Rating: 16V offers a solid safety margin for common 3.3V, 5V, and 12V circuits.
-
Low Equivalent Series Resistance (ESL/ESR): Enables excellent high-frequency noise suppression and filtering performance.
-
High Reliability: Suitable for automated assembly and robust in typical operating environments.
-
RoHS & Lead-Free Compliant: Meets global environmental standards.
Applications
-
High-Density Digital Circuits: Decoupling near the power pins of microprocessors (MPUs), FPGAs, and memory chips in smartphones, tablets, and wearables.
-
Portable & Wearable Electronics: Where board real estate is extremely limited.
-
RF Modules & IoT Devices: Noise filtering and coupling in Bluetooth, Wi-Fi, and cellular modules.
-
Power Management ICs (PMICs): Input/output filtering for LDOs and switching converters.
-
General Signal Conditioning: Coupling and filtering in sensor interfaces and audio paths.
Description

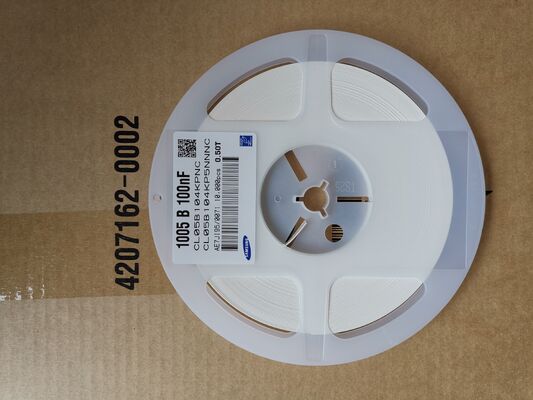

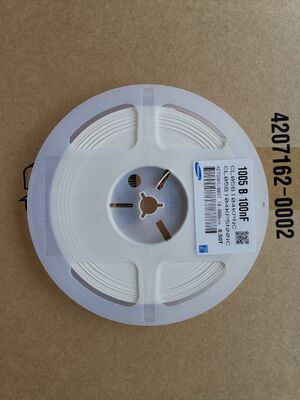

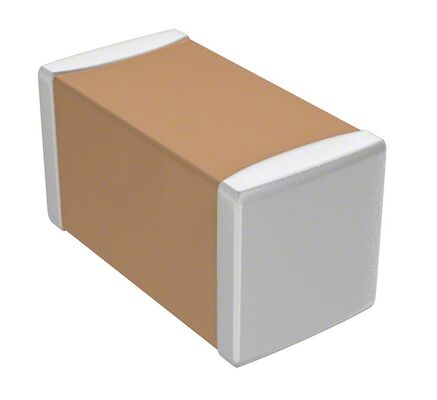

The CL05B104KP5NNNC is a miniaturized, high-performance surface-mount multilayer ceramic capacitor (MLCC) in an ultra-compact 0402 footprint (1.0mm x 0.5mm). It offers a standard capacitance value of 0.1µF (104) with a 16V rated voltage. Utilizing a stable X5R temperature characteristic dielectric (±15% capacitance change from -55°C to +85°C), this component is designed for reliable operation in a wide range of environmental conditions and is compliant with lead-free (Pb-free) soldering processes.
Technical Specifications
|
category
|
|
|
|
manufacturer
|
|
|
|
series
|
|
|
|
wrap
|
Tape and Reel (TR)
Shear Belt (CT)
Digi-Reel® won the custom tape and tape
|
|
|
Part status
|
|
|
|
capacitance
|
|
|
|
Tolerance
|
|
|
|
Voltage - Rating
|
|
|
|
temperature coefficient
|
|
|
|
Operating temperature
|
|
|
|
characteristic
|
|
|
|
grade
|
|
|
|
apply
|
|
|
|
Failure rate
|
|
|
|
Mounting type
|
|
|
|
Package/Enclosure
|
|
|
|
Size / Dimensions
|
0.039" L x 0.020" W (1.00mm x 0.50mm)
|
|
|
Height - Mounting (max)
|
|
|
|
Thickness (max)
|
|
|
|
Lead spacing
|
|
|
|
Lead style
|
|
Drawing
