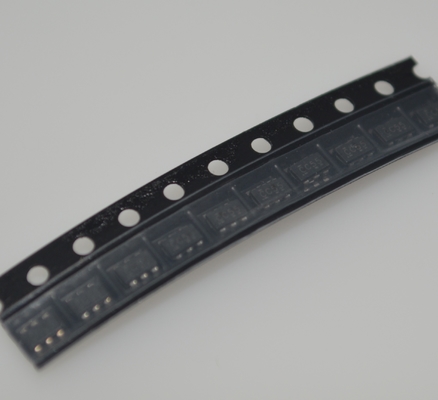

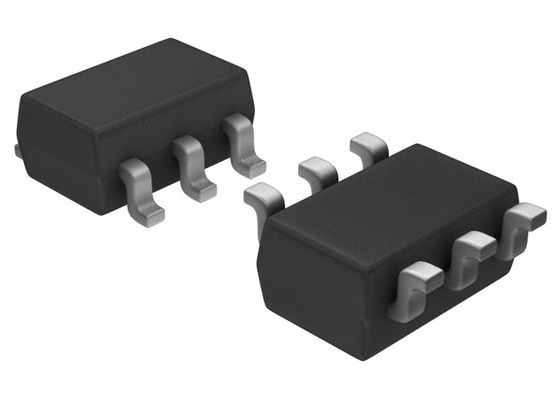

SN74LVC1G3157DBVR Low-Voltage Single 2:1 Mux/Demux with 5V Tolerant I/O 3.5ns Speed 10µA ICC 32mA Drive Tiny SOT-23-6 Wide 1.65-5.5V Range & High ESD Protection

SN74LVC1G3157DBVR Low-Voltage Single 2:1 Mux/Demux with 5V Tolerant I/O 3.5ns Speed 10µA ICC 32mA Drive Tiny SOT-23-6 Wide 1.65-5.5V Range & High ESD Protection

Features

• ESD protection exceeds JESD 22

  – 2000V Human Body Model (A114-A)

  – 1000V Charged-Device Model (C101)

• 1.65V to 5.5V VCC operation

• Qualified for 125°C operation

• Specified break-before-make switching

• Rail-to-rail signal handling

• Operating frequency typically 340MHz at room temperature

• High speed, typically 0.5ns (VCC = 3V, CL = 50pF)

• Low ON-state resistance, typically approximately 6Ω (VCC = 4.5V)

• Latch-up performance exceeds 100mA Per JESD 78, class II

Applications

• Wearables and mobile devices

• Portable computing

• Internet of things (IoT)

• Audio signal routing

• Remote radio unit

• Portable medical equipment

• Surveillance

• Home automation

• I2C/SPI/UART bus multiplexing

• Wireless charging

Description

This single channel single-pole double-throw (SPDT) analog switch is designed for 1.65V to 5.5V VCC operation.

The SN74LVC1G3157 device handles both analog and digital signals. The SN74LVC1G3157 device allows signals with amplitudes of up to VCC (peak) to be transmitted in either direction.

Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems.

INFORMATION

Drawing

Our advantage :

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^


Product List
Supply a Series of Electronic Components, full range of semiconductors, active & passive Components.We can help you to get all for bom of the PCB,IN a word, you can get one-stop solution here,


The offers including:
Integrated Circuit, Memory ICs, Diode, Transistor , Capacitor, Resistor, Varistor, Fuse, Trimmer & Potentiometer, Transformer, Battery, Cable, Relay, Switch, Connector, Terminal Block, Crystal & Oscillator, Inductor, Sensor, Transformer, IGBT Driver, LED,LCD, Convertor, PCB (Printed Circuit Board),PCBA (PCB Assembly)

Strong in Brand:
Microchip, MAX, AD, TI, ATMEL, ST, ON, NS, Intersil, Winbond, Vishay, ISSI, Infineon, NEC, FAIRCHILD, OMRON,YAGEO, TDK, etc
