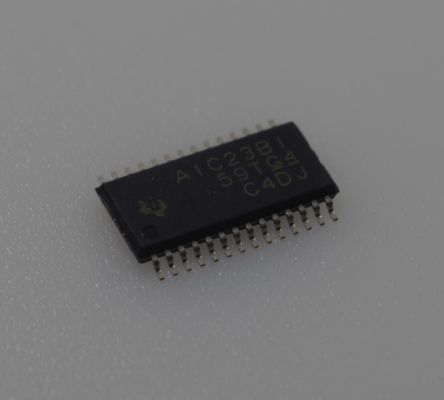

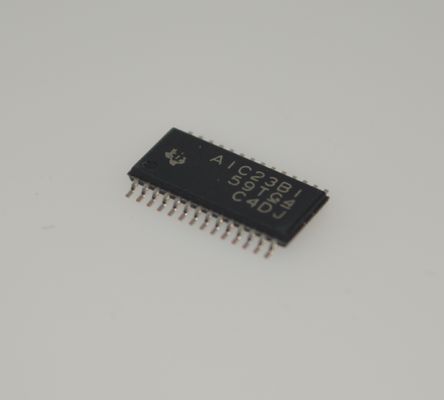

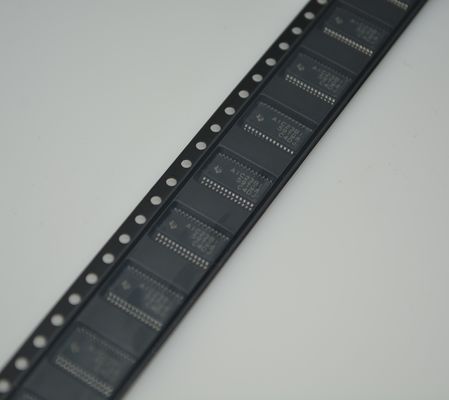

TLV320AIC23BIPWR Ultra-Low Power Stereo CODEC with Integrated HP Amp Programmable & Flexible Audio Interface for Portable/Battery-Optimized Hi-Fi Applications

TLV320AIC23BIPWR Ultra-Low Power Stereo CODEC with Integrated HP Amp Programmable & Flexible Audio Interface for Portable/Battery-Optimized Hi-Fi Applications

Features

• High-Performance Stereo Codec

  − 90-dB SNR Multibit Sigma-Delta ADC (A-weighted at 48 kHz)

  − 100-dB SNR Multibit Sigma-Delta DAC (A-weighted at 48 kHz)

  − 1.42 V – 3.6 V Core Digital Supply: Compatible With TI C54x DSP Core Voltages

  − 2.7 V – 3.6 V Buffer and Analog Supply: Compatible Both TI C54x DSP Buffer Voltages

  − 8-kHz – 96-kHz Sampling-Frequency Support

• Software Control Via TI McBSP-Compatible Multiprotocol Serial Port

  − 2-wire-Compatible and SPI-Compatible Serial-Port Protocols

  − Glueless Interface to TI McBSPs

• Audio-Data Input/Output Via TI McBSP-Compatible Programmable Audio Interface

  − I2S-Compatible Interface Requiring Only One McBSP for both ADC and DAC

  − Standard I2S, MSB, or LSB Justified-Data Transfers

  − 16/20/24/32-Bit Word Lengths

  − Audio Master/Slave Timing Capability Optimized for TI DSPs (250/272 fs), USB mode

  − Industry-Standard Master/Slave Support Provided Also (256/384 fs), Normal mode

  − Glueless Interface to TI McBSPs

• Integrated Total Electret-Microphone Biasing and Buffering Solution

  − Low-Noise MICBIAS pin at 3/4 AVDD for Biasing of Electret Capsules

  − Integrated Buffer Amplifier With Tunable Fixed Gain of 1 to 5

  − Additional Control-Register Selectable Buffer Gain of 0 dB or 20 dB

• Stereo-Line Inputs

  − Integrated Programmable Gain Amplifier

  − Analog Bypass Path of Codec

• ADC Multiplexed Input for Stereo-Line Inputs and Microphone

• Stereo-Line Outputs

  − Analog Stereo Mixer for DAC and Analog Bypass Path

• Volume Control With Mute on Input and Output

• Highly Efficient Linear Headphone Amplifier

  − 30 mW into 32 Ω From a 3.3-V Analog Supply Voltage

• Flexible Power Management Under Total Software Control

  − 23-mW Power Consumption During Playback Mode

  − Standby Power Consumption <150 µW

  − Power-Down Power Consumption <15 µW

• Industry’s Smallest Package: 32-Pin TI Proprietary MicroStar Junior™

  − 25 mm2 Total Board Area

  − 28-Pin TSSOP Also Is Available (62 mm2 Total Board Area)

• Ideally Suitable for Portable Solid-State Audio Players and Recorders

Applications

Audio

Automotive

Broadband

Digital

Control

Military

Optical

Networking

Security

Telephony

Video & Imaging

Wireless

Description

The TLV320AIC23BIPWR is a powerful, highly integrated audio CODEC chip. Its core advantages are:

1:High Audio Quality: SNR over 90 dB provides very clean audio signals.

2:Low Power Consumption: Milliwatt-level operating power and microwatt-level standby power, ideal for portable devices.

3:High Integration: Integrates ADCs, DACs, a headphone amplifier, and multiple interfaces, greatly reducing the number of external components.

4:Flexibility: Supports multiple audio data formats and control interfaces, making it easy to connect to various host chips.

5:Small Size: The TSSOP package saves PCB space.

INFORMATION

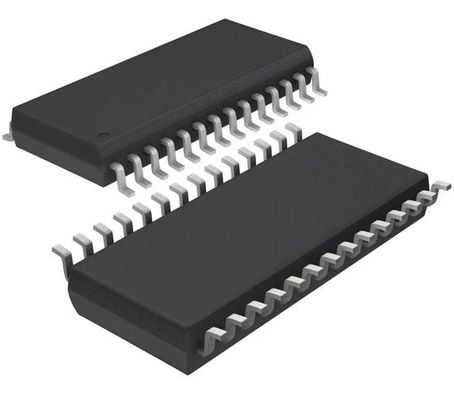

Drawing
