Features

• Exceeds requirements of EIA-485 standard

• Bus-polarity correction within 76ms (tFS)

• Data rate: 300bps to 250kbps

• Works with two configurations:

  – Failsafe resistors only

  – Failsafe and differential termination resistors

• Up to 256 nodes on a bus (1/8 Unit Load)

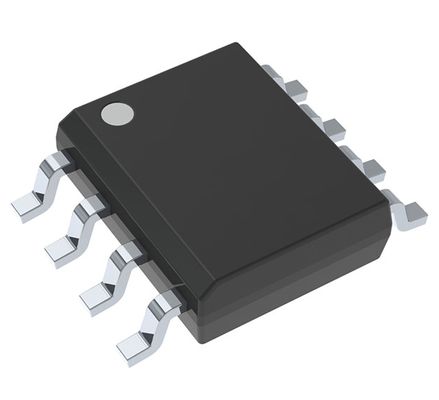

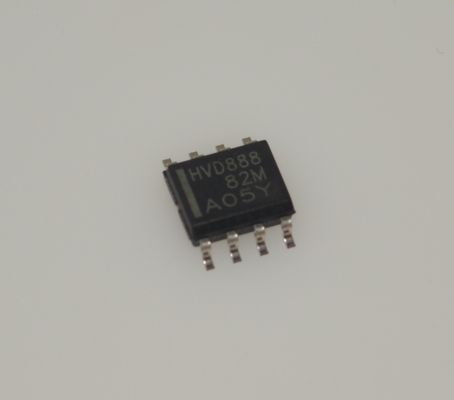

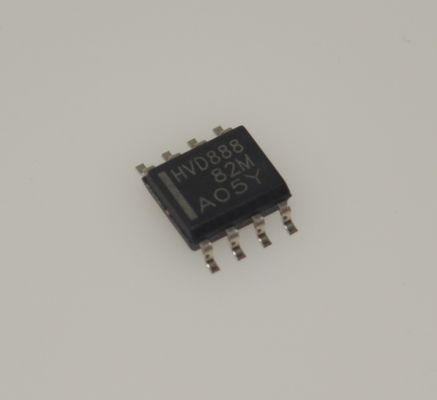

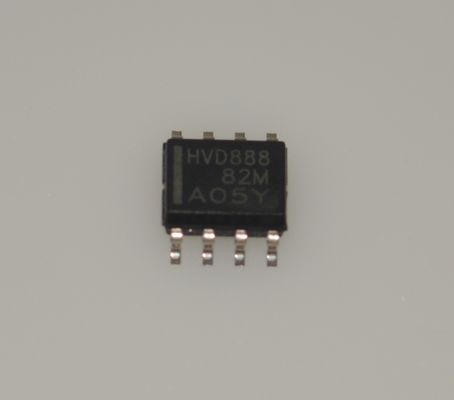

• SOIC-8 Package for backward compatibility

• Bus-pin protection:

  – ±16kV HBM protection

  – ±12kV IEC61000-4-2 Contact discharge

  – +4kV IEC61000-4-4 Fast transient burst

Applications

• E-Metering networks

• Industrial automation

• HVAC systems

• DMX512-networks

• Process control

• Battery-powered applications

• Motion control

• Telecom equipment

Description

The SN65HVD888 is a low-power RS-485 transceiver with automatic bus-polarity correction and transient protection. Upon hot plug-in, the device detects and corrects the bus polarity within the first 76ms of bus idling. On-chip transient protection protects the device against IEC61000 ESD and EFT transients. This device has robust drivers and receivers for demanding industrial applications. The bus pins are robust to electrostatic discharge (ESD) events, with high levels of protection to Human-Body Model (HBM), Air-Gap Discharge, and Contact Discharge specifications.

The device combines a differential driver and a differential receiver, which operate together from a single 5V power supply. The driver differential outputs and the receiver differential inputs are connected internally to form a bus port suitable for half-duplex (two-wire bus) communication. The device features a wide common-mode voltage range making the device suitable for multi-point applications over long cable runs. The SN65HVD888 is available in an SOIC-8 package, and is characterized from –40°C to 125°C.
