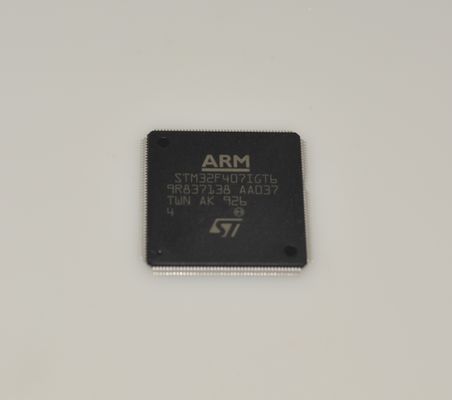

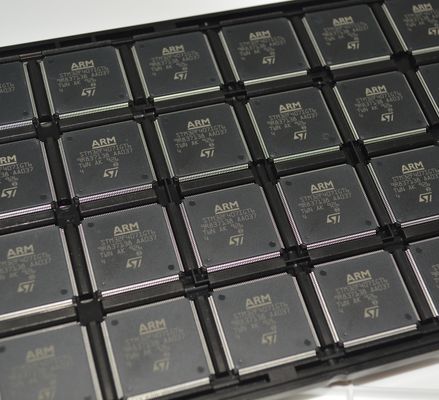

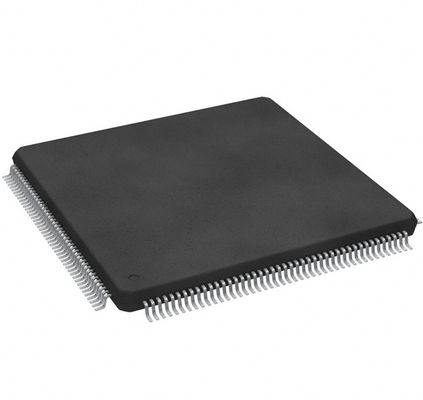

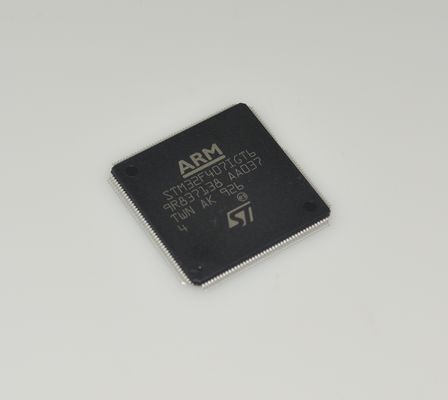

STM32F407IGT6 168MHz Cortex-M4 w/ FPU 1MB Flash 192KB RAM Ethernet Camera IF Cryptographic Acceleration Extensive Timers & Connectivity

STM32F407IGT6 168MHz Cortex-M4 w/ FPU 1MB Flash 192KB RAM Ethernet Camera IF Cryptographic Acceleration Extensive Timers & Connectivity

Features

• Includes ST state-of-the-art patented technology

• Core: Arm® 32-bit Cortex®-M4 CPU with FPU, Adaptive real-time accelerator (ART Accelerator) allowing 0-wait state execution from flash memory, frequency up to 168 MHz, memory protection unit, 210 DMIPS/ 1.25 DMIPS/MHz (Dhrystone 2.1), and DSP instructions

• Memories

  – Up to 1 Mbyte of flash memory

  – Up to 192+4 Kbytes of SRAM including 64 Kbyte of CCM (core coupled memory) data RAM

  – 512 bytes of OTP memory

  – Flexible static memory controller supporting Compact Flash, SRAM, PSRAM, NOR and NAND memories

• LCD parallel interface, 8080/6800 modes

• Clock, reset, and supply management

  – 1.8 V to 3.6 V application supply and I/Os

  – POR, PDR, PVD and BOR

  – 4-to-26 MHz crystal oscillator

  – Internal 16 MHz factory-trimmed RC (1% accuracy)

  – 32 kHz oscillator for RTC with calibration

  – Internal 32 kHz RC with calibration

• Low-power operation

  – Sleep, Stop, and Standby modes

  – VBAT supply for RTC, 20×32-bit backup registers + optional 4 KB backup SRAM

• 3×12-bit, 2.4 MSPS A/D converters: up to 24 channels and 7.2 MSPS in triple interleaved mode

• 2×12-bit D/A converters

• General-purpose DMA: 16-stream DMA controller with FIFOs and burst support

• Up to 17 timers: up to twelve 16-bit and two 32 bit timers up to 168 MHz, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input

• Debug mode

  – Serial wire debug (SWD) & JTAG interfaces

  – Cortex-M4 Embedded Trace Macrocell™

• Up to 140 I/O ports with interrupt capability

  – Up to 136 fast I/Os up to 84 MHz

  – Up to 138 5 V-tolerant I/Os

• Up to 15 communication interfaces

  – Up to 3 × I2C interfaces (SMBus/PMBus)

  – Up to 4 USARTs/2 UARTs (10.5 Mbit/s, ISO 7816 interface, LIN, IrDA, modem control)

  – Up to 3 SPIs (42 Mbits/s), 2 with muxed full-duplex I2S to achieve audio class accuracy via internal audio PLL or external clock

  – 2 × CAN interfaces (2.0B Active)

  – SDIO interface

• Advanced connectivity

  – USB 2.0 full-speed device/host/OTG controller with on-chip PHY

  – USB 2.0 high-speed/full-speed device/host/OTG controller with dedicated DMA, on-chip full-speed PHY and ULPI

  – 10/100 Ethernet MAC with dedicated DMA: supports IEEE 1588v2 hardware, MII/RMII

Applications

Industrial Automation and Control – Such as PLCs, motor drives, industrial networks, and human-machine interfaces (HMI).

Medical and Healthcare Equipment – Including patient monitors, diagnostic devices, and portable medical instruments.

Consumer Electronics and IoT – Used in high-end smart home appliances, IoT gateways, and audio processing systems.

Automotive and Transportation – Applicable in body control systems, infotainment subsystems, and fleet management terminals.

Image Processing and Video Applications – Supports barcode scanners, basic machine vision, and surveillance system data acquisition.

Description

The STM32F405xx and STM32F407xx family is based on the high-performance Arm® Cortex®-M4 32-bit RISC core operating at a frequency of up to 168 MHz. The Cortex®-M4 core features a floating-point unit (FPU) single precision which supports all Arm single precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.

The STM32F405xx and STM32F407xx family incorporates high-speed embedded memories (flash memory up to 1 Mbyte, up to 192 Kbytes of SRAM), up to 4 Kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, three AHB buses and a 32-bit multi-AHB bus matrix.

All devices offer three 12-bit ADCs, two DACs, a low-power RTC, 12 general-purpose 16-bit timers including two PWM timers for motor control, two general-purpose 32-bit timers. a true random number generator (RNG). They also feature standard and advanced communication interfaces.

• Up to three I2Cs

• Three SPIs, two I2Ss full duplex. To achieve audio class accuracy, the I2S peripherals can be clocked via a dedicated internal audio PLL or via an external clock to allow synchronization

• Four USARTs plus two UARTs

• A USB OTG full speed and a USB OTG high speed with full-speed capability (with the ULPI)

• Two CANs

• An SDIO/MMC interface

• Ethernet and the camera interface available on STM32F407xx devices only
