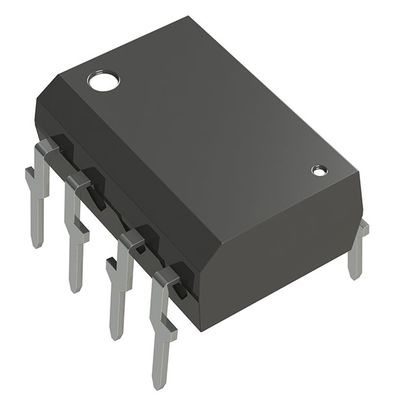

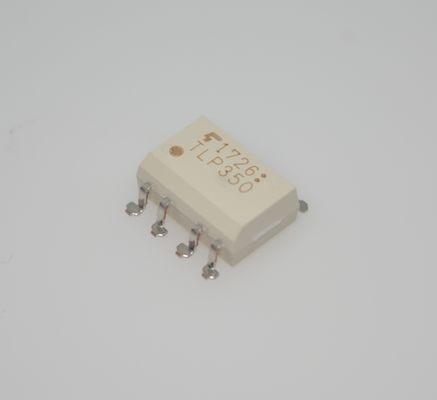

TLP350H(F) High-Speed 1.0A IGBT/MOSFET Gate Drive Optocoupler with 0.5µs Max Delay 50kV/µs CMR -40°C to 110°C Range 5V to 30V Supply SO6 Package and Under Voltage Lockout (UVLO) Protection

TLP350H(F) High-Speed 1.0A IGBT/MOSFET Gate Drive Optocoupler with 0.5andmicro;s Max Delay 50kV/andmicro;s CMR -40anddeg;C to 110anddeg;C Range 5V to 30V Supply SO6 Package and Under Voltage Lockout (UVLO) Protection

andnbsp;

Features

Buffer logic type (totem pole output)

Output peak current: andplusmn;2.5 A (max)

Operating temperature: -40 to 125℃

Supply current: 3 mA (max)

Supply voltage: 15 to 30 V

Threshold input current: 5 mA (max)

Propagation delay time: 500 ns (max)

Common-mode transient immunity: andplusmn;20 kV/andmicro;s (min)

Isolation voltage: 3750 Vrms (min)

andnbsp;

Applications

andbull; Industrial Inverters

andbull; Air Conditioner Inverters

andbull; MOSFET Gate Drivers

andbull; IGBT Gate Drivers

andbull; Induction Cooktop and Home Appliances

andnbsp;

Description

The TLP350H is a photocoupler in a DIP8 package that consists of a GaAℓAs infrared light-emitting diode (LED) optically coupled to an integrated high-gain, high-speed photodetector IC chip. It provides guaranteed performance and specifications at temperatures up to 125 .The TLP350H has an internal Faraday shield that provides a guaranteed Common-mode transient immunity of andplusmn;20 kV/andmicro;s. It has a totem-pole output that can both sink and source current.

The TLP350H is ideal for IGBT of small capacity to middle capacity and power MOSFET gate drive.

andnbsp;

INFORMATION

andnbsp;

Drawing

Our advantage :phones, PDAand#39;s, notebook comput.ers

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

andnbsp;

be sure to meet your need for all kinds of components. ^_^
