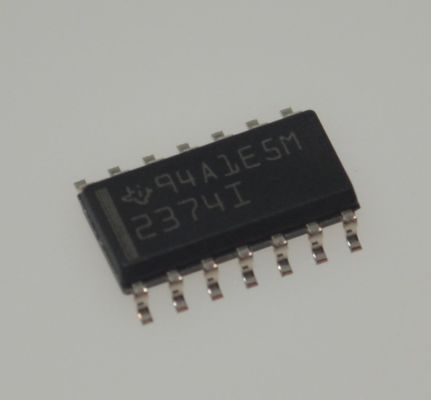

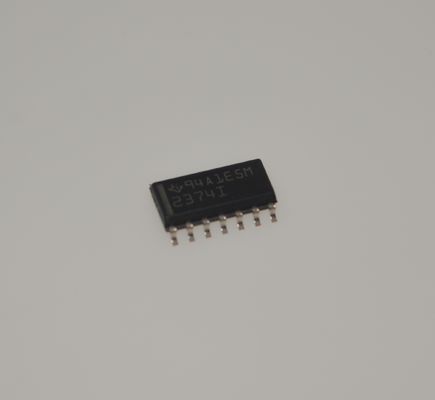

TLV2374IDR Quad RRIO Op Amp with 3MHz GBW 2.4V/µs Slew Rate 2.7-16V Supply Low Noise (19nV/√Hz) Low IQ (950µA/ch) High Drive SOIC-14 -40°C to 125°C for Precision Applications

TLV2374IDR Quad RRIO Op Amp with 3MHz GBW 2.4V/µs Slew Rate 2.7-16V Supply Low Noise (19nV/√Hz) Low IQ (950µA/ch) High Drive SOIC-14 -40°C to 125°C for Precision Applications

Features

• Rail-to-Rail Input and Output

• WideBandwidth: 3 MHz

• High Slew Rate: 2.4 V/μs

• Supply Voltage Range: 2.7 V to 16 V

• Supply Current: 550 μA/Channel

• Low-Power Shutdown Mode

  – IDD(SHDN): 25 μA/Channel

• Input Noise Voltage: 39 nV/√Hz

• Input Bias Current: 1 pA

• Specified Temperature Range:

  – −40°C to +125°C (Industrial Grade)

• Ultra-Small Packaging:

  – 5-or 6-Pin SOT-23 (TLV2370, TLV2371)

  – 8-or 10-Pin MSOP (TLV2372, TLV2373)

Applications

• White Goods

• Handheld Test Equipment

• Portable Blood Glucose Systems

• Remote Sensing

• Active Filters

• Industrial Automation

• Battery-Powered Electronics

Description

The TLV237x single-supply operational amplifiers provide rail-to-rail input and output capability. The TLV237x takes the minimum operating supply voltage down to 2.7 V over the extended industrial temperature range while adding the rail-to-rail output swing feature. The TLV237x also provides 3-MHz bandwidth from only 550 μA. The maximum recommended supply voltage is 16 V, which allows the devices to be operated from (±8-V supplies down to ±1.35 V) a variety of rechargeable cells.

The CMOS inputs enable use in high-impedance sensor interfaces, with the lower voltage operation making an ideal alternative for the TLC227x in battery-powered applications. The rail-to-rail input stage further increases its versatility. The TLV237x is the seventh member of a rapidly growing number of RRIO products available from TI, and it is the first to allow operation up to 16-V rails with good ac performance.

All members are available in PDIP and SOIC with the singles in the small SOT-23 package, duals in the MSOP, and quads in the TSSOP package.

The 2.7-V operation makes the TLV237x compatible with Li-Ion powered systems and the operating supply voltage range of many micro-power microcontrollers available today including TI’s MSP430.

INFORMATION

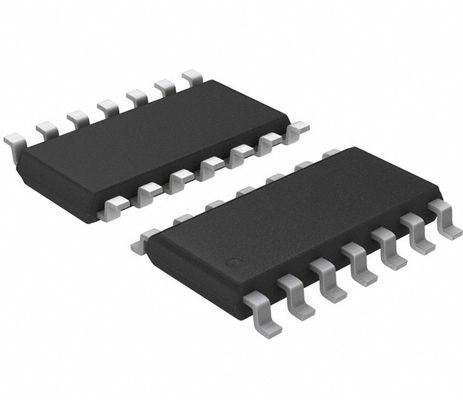

Drawing
