Features

One, Two, and Four Channels of ESD Protection Note: For 6 and 8andminus;channel Devices, See the CM1213 Data Sheet

Provides ESD Protection to IEC61000andminus;4andminus;2 Level 4

andplusmn;12 kV Contact Discharge

Low Channel Input Capacitance of 0.85 pF Typical

Minimal Capacitance Change with Temperature and Voltage

Channel Input Capacitance Matching of 0.02 pF Typical is Ideal for Differential Dignals

Each CH (I/O) Pin Can Withstand Over 1000 ESD Strikes*

SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AECandminus;Q101 Qualified and PPAP Capable

These Devices are Pbandminus;Free, Halogen Free/BFR Free and are RoHS Compliant

andnbsp;

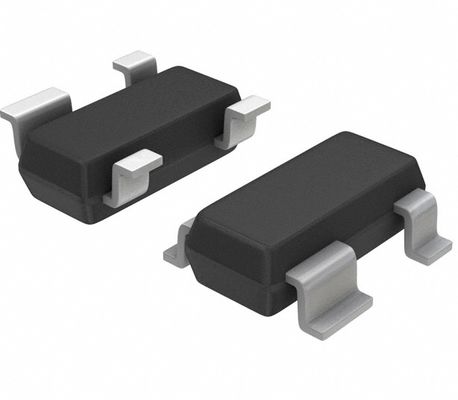

Description

The CM1213A family of diode arrays has been designed to provide ESD protection for electronic components or subsystems requiring minimal capacitive loading. These devices are ideal for protecting systems with high data and clock rates or for circuits requiring low capacitive loading. Each ESD channel consists of a pair of diodes in series which steer the positive or negative ESD current pulse to either the positive (VP) or negative (VN) supply rail. A Zener diode is embedded between VP and VN, offering two advantages. First, it protects the VCC rail against ESD strikes, and second, it eliminates the need for a bypass capacitor that would otherwise be needed for absorbing positive ESD strikes to ground. The CM1213A will protect against ESD pulses up to 12 kV per the IEC 61000andminus;4andminus;2 standard.

andnbsp;

Description

USB2.0 Ports at 480 Mbps in Desktop PCs, Notebooks and Peripherals

 IEEE1394 Firewire

 Ports at 400 Mbps/800 Mbps

DVI Ports, HDMI Ports in Notebooks, Set Top Boxes, Digital TVs, LCD Displays

Serial ATA Ports in Desktop PCs and Hard Disk Drives

PCI Express Ports

General Purpose Highandminus;Speed Data Line ESD Protection

andnbsp;

INFORMATION

andnbsp;

Drawing

Our advantage :phones, PDAand#39;s, notebook comput.ers

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

andnbsp;

be sure to meet your need for all kinds of components. ^_^
