LM358DT General-Purpose Dual Op-Amp with Wide Supply Range (3-32V) High DC Gain Low Current Large Output Swing Short Circuit Protection Internal Frequency Compensation and Low Cost

LM358DT General-Purpose Dual Op-Amp with Wide Supply Range (3-32V) High DC Gain Low Current Large Output Swing Short Circuit Protection Internal Frequency Compensation and Low Cost

andnbsp;

Features

 Frequency compensation implemented internally

 Large DC voltage gain: 100 dB

 Wide bandwidth (unity gain): 1.1 MHz (temperature compensated)

 Very low supply current per channel essentially independent of supply voltage

 Low input bias current: 20 nA (temperature compensated)

 Low input offset voltage: 2 mV

 Low input offset current: 2 nA

 Input common-mode voltage range includes negative rails

 Differential input voltage range equal to the power supply voltage

 Large output voltage swing 0 V to (VCC+ - 1.5 V)

andnbsp;

Applications

1:Signal Conditioning: Perfect for amplifying small signals from sensors (e.g., thermistors, photocells) and acting as a buffer for impedance matching.

2:Active Filters: Used to implement low-pass, high-pass, and band-pass filter circuits for processing analog signals.

3:Transducer Amplifiers: Directly interfaces with various transducers to amplify their output signals to a usable level for microcontrollers or ADCs.

4:Voltage Followers/Buffers: Provides high input impedance and low output impedance, preventing load effects on sensitive circuits.

5:DC Gain Blocks: Provides stable DC amplification for low-frequency signals and control systems.

andnbsp;

Description

These circuits consist of two independent, high gain, internally frequency-compensated op amps, specifically designed to operate from a single power supply over a wide range of voltages. The low-power supply drain is independent of the magnitude of the power supply voltage.

Application areas include transducer amplifiers, DC gain blocks and all the conventional op amp circuits, which can now be more easily implemented in single power supply systems. For example, these circuits can be directly supplied with the standard 5 V, which is used in logic systems and will easily provide the required interface electronics with no additional power supply.

In linear mode, the input common-mode voltage range includes ground and the output voltage can also swing to ground, even though operated from only a single power supply voltage.

andnbsp;

INFORMATION

andnbsp;

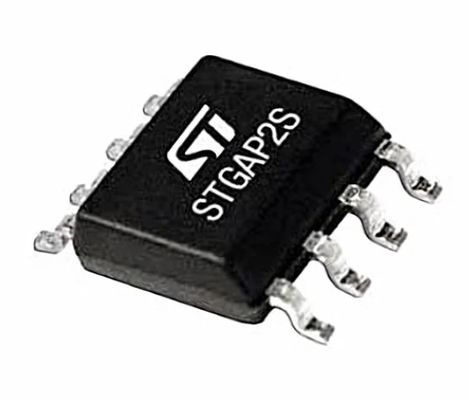

Drawing
