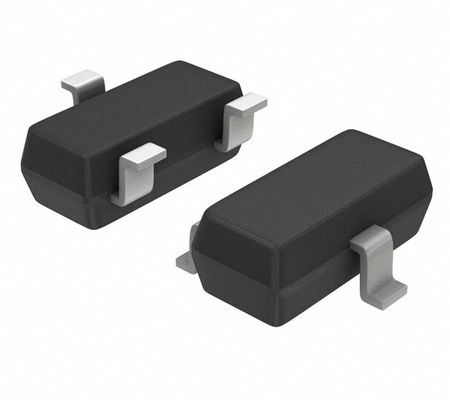

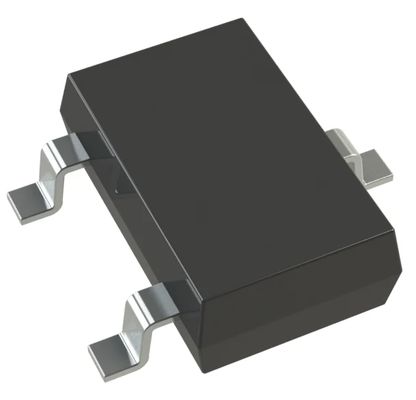

MMBT2907ALT1G PNP Bipolar Transistor 60V VCEO, 600mA Continuous Current 310mW Power Dissipation SOT-23 Package Low Saturation Voltage High Current Gain For General-Purpose Amplification and Switching

MMBT2907ALT1G PNP Bipolar Transistor 60V VCEO, 600mA Continuous Current 310mW Power Dissipation SOT-23 Package Low Saturation Voltage High Current Gain For General-Purpose Amplification andamp; Switching

andnbsp;

Features

1:Transistor Type: PNP Bipolar (BJT)

2:Voltage Rating: 60V Vandlt;subandgt;CEOandlt;/subandgt;

3:Current Rating: 600mA Continuous Iandlt;subandgt;Candlt;/subandgt;

4:Power Rating: 310mW Total Power Dissipation

5:Package: Miniature SOT-23-3 (SC-59)

6:Saturation Voltage: Low Vandlt;subandgt;CE(sat)andlt;/subandgt;

7:Current Gain: High handlt;subandgt;FEandlt;/subandgt;

8:Qualification: RoHS Compliant

andnbsp;

Applications

1:Signal Amplification: Used in driver stages, audio pre-amplifiers, and other general-purpose analog amplification circuits.

2:Low-Side Switching: Ideal for controlling relays, motors, LEDs, and other loads where the transistor is placed between the load and ground.

3:nterface Circuits: Serves as a level shifter or buffer between microcontrollers and higher-voltage/current peripherals.

4:Power Management: Incorporated in linear regulators, constant-current sources, and other power control circuitry.

5:Consumer andamp; Industrial Electronics: Commonly found in power supplies, motor drives, and various control modules across industries.

andnbsp;

Description

The MMBT2907ALT1G is a general-purpose PNP bipolar junction transistor housed in a compact, surface-mount SOT-23-3 package. It is designed for a wide range of analog amplification and low-side switching applications. This transistor features a collector-emitter voltage of 60V and a continuous collector current of 600mA, providing a robust solution for managing moderate power levels. Its high current gain and low saturation voltage ensure efficient operation and minimal power loss in both switching and linear circuits. As a lead-free and RoHS compliant component, it is suitable for modern electronic designs.

andnbsp;

INFORMATION

andnbsp;

Drawing
