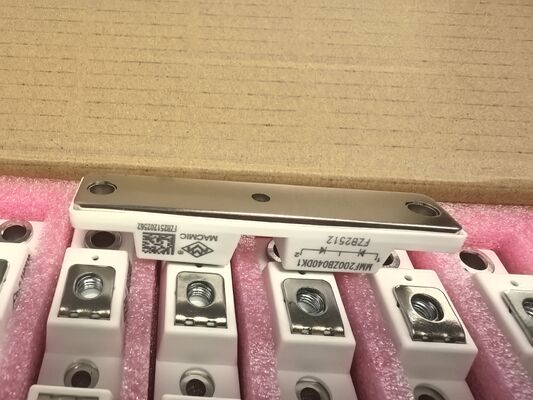

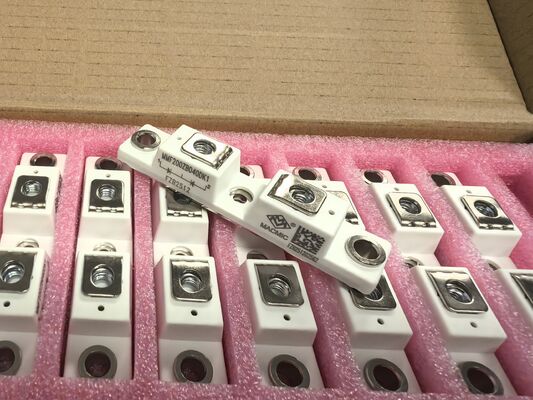

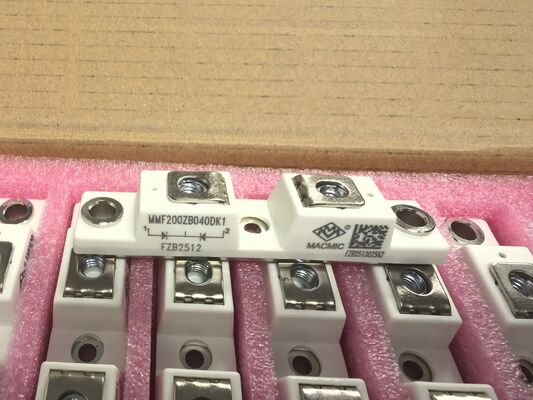

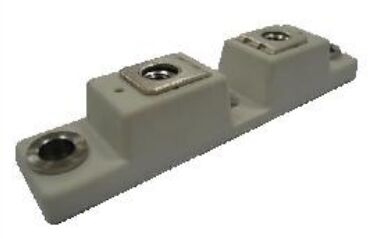

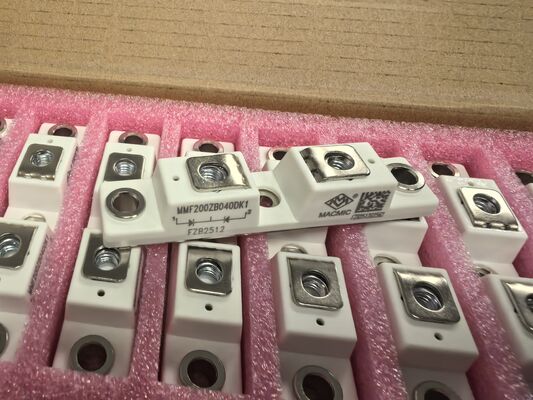

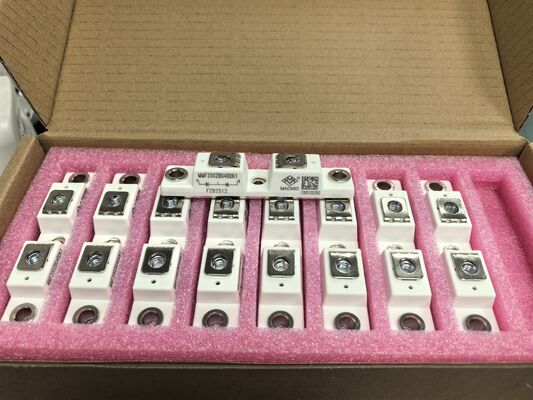

MMF200ZB040DK1 200A SiC MOSFET Power Module 400V Low Rds(on) 1.6mΩ High Efficiency High Speed Switching Automotive Grade Liquid Cooled For xEV Traction Inverters

MMF200ZB040DK1 200A SiC MOSFET Power Module 400V Low Rds(on) 1.6mΩ High Efficiency High Speed Switching Automotive Grade Liquid Cooled For xEV Traction Inverters

Features

• Ultrafast Reverse Recovery Time

• Soft Reverse Recovery Characteristics

• Low Reverse Recovery Loss

• Low Forward Voltage

• High Surge Current Capability

• Low Inductance Package

Applications

• Inversion Welder

• Uninterruptible Power Supply (UPS)

• Plating Power Supply

• Ultrasonic Cleaner and Welder

• Converter & Chopper

• Power Factor Correction (PFC) Circuit

Description

The MMF200ZB040DK1 is a state-of-the-art, automotive-grade Silicon Carbide (SiC) MOSFET power module designed specifically for the demanding requirements of next-generation electric vehicle powertrains. It integrates advanced SiC technology to deliver exceptional efficiency and power density, featuring a high current rating of 200A and a 400V voltage class. The module boasts an extremely low typical on-state resistance (Rds(on)) of 1.6mΩ, which minimizes conduction losses. Combined with the inherent high-speed switching capabilities of SiC, it enables significantly higher operating frequencies and reduced system-level losses compared to traditional IGBT solutions. It is qualified to stringent automotive reliability standards, and its optimized liquid-cooled baseplate ensures effective thermal management for high-power, continuous operation.

INFORMATION

Drawing
